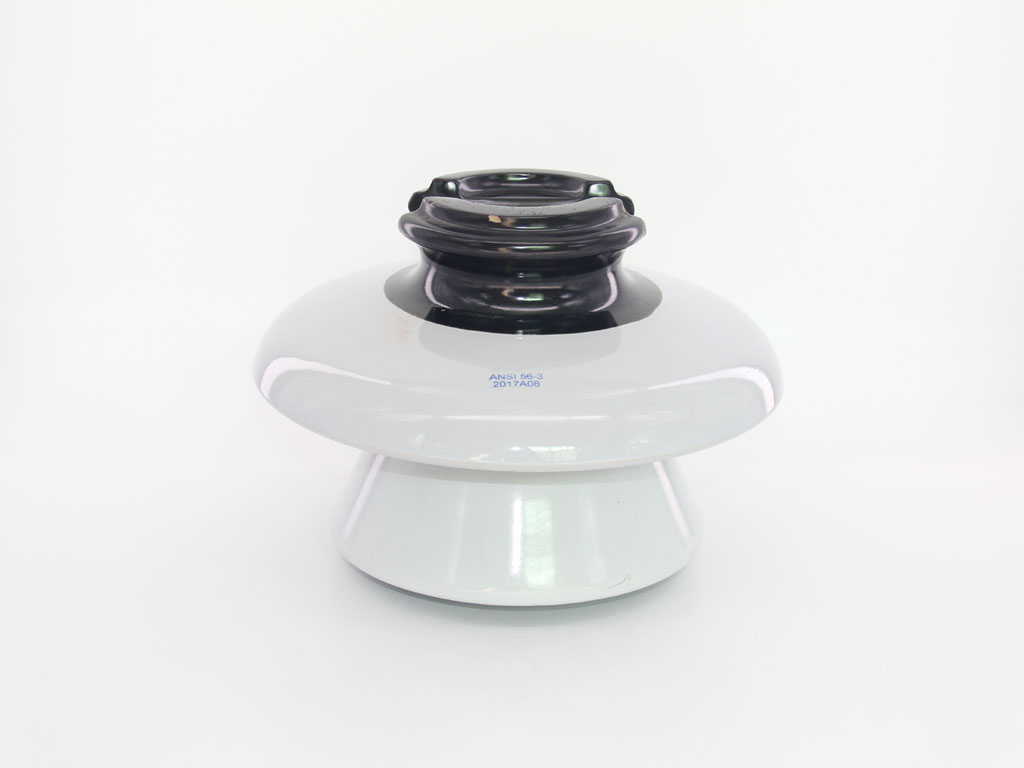

High Voltage Pin Type Insulators ANSI 56-3

High Voltage Pin Type Insulators ANSI 56-3

Dimensions
Diameter (D): 10 1/2Inches(267mm)
Height (H): 7 1/2Inches(191mm)
Leakage Distance: 21Inches(533mm)
Dry Arcing Distance: 9 1/2Inches(241mm)
Minimum Pin Height: 8Inches(203mm)

Availability:

Quantity:



Inquire Add to Basket

Model:
ANSI 65-3
Brand:
SASUN
Code:
8546209090-1

Product Description

Mechanical Values

Cantilever Strength: 3,000Pounds(13.6kN)

Electrical Values

Type Application Voltage: 34.5kV
Low Frequency Dry Flashover Voltage: 125kV
Low Frequency Wet Flashover Voltage: 80kV
Critical Impulse Flashover Votage Positive: 205kV
Critical Impulse Flashover Votage Negative: 265kV
Low Frequency Puncture Voltage: 165kV

Radio Influence Voltage Data
Test Voltage RMS to Ground: 30kV
Maximum RIV at 1000 kHz: 200μV
