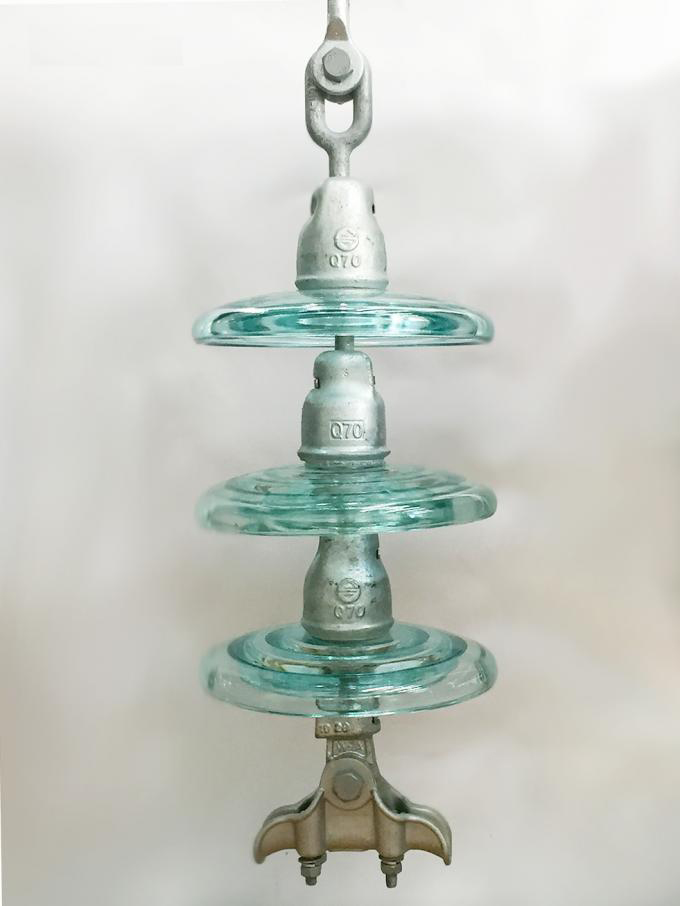

Toughened Glass Suspension Insulator of standard Type（U70B）

U70B Standard Type Toughened Glass Suspension Insulator

	U70B/140	U70B/146	U70B/127
Diameter ( D ) mm	255	255	255
Spacing ( H) mm	140	146	127
Creepage (L ) mm	320	320	320
Socket coupling mm	16	16	16
Mechanical Routine test ( KN)	70	70	70
Wet Power Frequency Withstand Voltage ( KV )	35	35	35
Dry Lightning Impulse Withstand Voltage (KV )	40	40	40
Power Frequency Puncture Voltage ( KV )	100	100	100
Net Weight ( KG )	3.6	3.6	3.6

Availability:

Quantity:



Inquire Add to Basket

Model:
U70B/146
Brand:
SASUN
Code:
8546100000-1

Product Description

SASUN , Experts and pioneers in insulation technology

With 20 years of experience and investment in R&D, SASUN has gained uncontested expertise in research, design, manufacturing and testing of insulators for power networks up to very high voltages and for railway catenary systems. SASUN is the partner of choice for all insulation applications.

Research & Development, a permanent and continuous investment

Always on the lookout for continuous technological improvements, SASUN heavily invests in Research and Development. Our research and testing facilities as well as our high voltage CEB laboratory both located in France boast state-of-the-art equipment that allows extensive research programs as well as testing of complete strings for systems up to 800 kV.

Unique manufacturing processes

SASUN manufacturing processes are unique in the world.

These processes have been developed and improved thanks to the experience SASUN has gained over the years following-up and assessing the performance of millions of insulators in service as well as through the integration of the latest technological advances.

Our goal: your satisfaction through the reliability of our products on your lines.

SASUN toughened glass suspension insulators

Standard profile:

The standard profile is characterized by a leakage distance* higher than the values indicated in the IEC 60305 for standard insulators and by shallow and well-spaced under-ribs that allow an effective self-cleaning action by wind or rain. It features a “leakage distance/spacing” ratio of around 2.2 and is particularly effective in suspension and tension applications in very light to medium polluted areas where typically the pollution level (ESDD) is lower than 0.1 mg/cm2.

Fog type profile:

The fog type profile is characterized by long and widely-spaced under-ribs so as to avoid arc bridging between adjacent ribs. It features a « leakage distance/spacing » ratio of around 3.2 and is particularly effective in coastal areas (Salt fog) as well as in polluted areas where a higher specific leakage distance is required.

Open profile:

The open type profile features a « leakage distance/spacing » ratio of around 2.4, with no under-ribs so as to avoid the accumulation of solid pollution deposits (dust, sand) on its lower surface. It is particularly adapted to suspension and tension applications in desert areas where wind is predominant and rain infrequent.

It is also effective for dead-end strings in cases of extreme industrial pollution and can solve ice-bridging problems when it is alternated with other profiles in the string.

External shed profile:

This profile offers a leakage distance equivalent to the anti-pollution profile and is adapted to the most extreme cases of solid pollution.

The elimination of the under-ribs reduces pollution build-up, promotes self-cleaning and facilitates manual cleaning when necessary.

Product names and types		Voltage grade（KV）	Product names and types		Voltage grade（KV）
Fog type profile	U70BLP	10KV-330KV	Standard profile	U40B	10KV-66KV
	U70BLP1	10KV-330KV		U70BS	10KV-330KV
	U70BLP2	10KV-330KV		U70BL	10KV-330KV
	U80BLP	10KV-330KV		U100BS	10KV-330KV
	U80BLP1	10KV-330KV		U100BL	10KV-330KV
	U100BLP	10KV-330KV		U120B	10KV-330KV
	U100BLP1	10KV-330KV		U160BS	10KV-500KV
	U100BLP2	10KV-330KV		U160BM	10KV-500KV
	U120BP	10KV-330KV		U160BL	10KV-500KV
	U120BP1	10KV-330KV		U210B	10KV-500KV
	U120BP2	10KV-330KV		U240B	10KV-500KV
	U160BMP	10KV-500KV		U300B	10KV-500KV
	U160BLP	10KV-500KV		U420B	10KV-500KV
	U160BMP1	10KV-500KV		U530B	10KV-1000KV
	U160BLP1	10KV-500KV		U550B	10KV-1000KV
	U210BP	10KV-500KV	Double shed profile	U70BLD	10KV-330KV
	U70BLP1	10KV-500KV		U70BSD	10KV-330KV
	U210BP1	10KV-500KV		U100BLD	10KV-330KV
	U240BP1	10KV-500KV		U100BSD	10KV-330KV
	U240BP2	10KV-500KV		U120BLD	10KV-330KV
	U300BP	10KV-500KV		U160BLD	10KV-500KV
	U300BP1	10KV-500KV		U160BSD	10KV-500KV
Open profile	U70BSM	10KV-330KV		U160BMD	10KV-500KV
	U70BLM	10KV-330KV		U210BD	10KV-500KV
	U100BSM	10KV-330KV		U240BD	10KV-500KV
	U100BLM	10KV-330KV	Ground profile	U70C	10KV-330KV
	U120BLM	10KV-330KV		U70CN	10KV-330KV
	U160BSM	10KV-500KV		U100C	10KV-330KV
	U160BMM	10KV-500KV		U100CN	10KV-330KV
	U160BLM	10KV-500KV
	U210BM	10KV-500KV
	U240BM	10KV-500KV

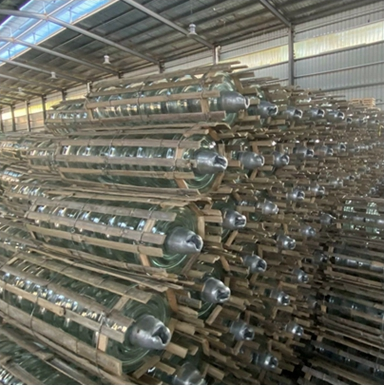

Packing and palletization

Reinforced and optimized packing

The packing and palletizing methods used by Sediver® result from the experience gained from the shipment of hundreds of millions of toughened glass insulators to users’ warehouses and construction sites in 150 countries as well as from extensive tests performed by packing research organizations.

The packing methods described and illustrated below have been developed expressly to minimize any possible damage during shipment and storage.

The wood used for packing is either standard or treated according to country regulations or/and customer specification.
