| Standard | GB1208-2006 |
| Rated Voltage: | 27kv |
| Rated Current: | 100A/200A |
| Mechanical Life: | 10000 |
| Keywords: | CUTOUT FUSE |
| Port: | NINGBO |
| High Light: | Distribution Line Cut Out Fuse |
| High Voltage Cut Out Fuse | |
| Porcelain Cut Out FUSE |
| Quantity: | |
|---|---|

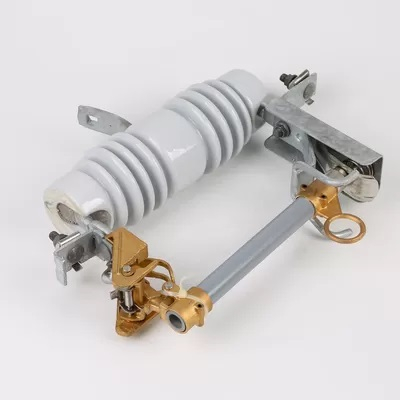

RW12-27/100
SASUN
8535100000-4
Drop-fuse installation of the technical requirements:
1 . Drop fuse base (bracket) and parts of the parts should be complete, fixed and solid, three-phase fulcrum in the same plane.
2, 10 KV drop-out fuse horizontal distance should not be less than 500mm.
| Type | 11KV DOFC/100 | 11KV DOFC/200 |
| Rated Voltage(kV) | 10-15 | 10-15 |
| Rated current(A) | 100 | 200 |
| Breaking current(A) | 10000 | 12000 |
| Impulse voltage(kV) | 110 | 110 |
| Power frequency wihstand voltage(kV) | 42 | 42 |
| Creepage distance(mm) | 250 | 250 |
| Weight(kg) | 7 | 7 |
| Dimensions(CM) | 38.5*34.5*10.5 | 38.5*34.5*10.5 |
Lead Time :
| Quantity(Pieces) | 1 - 300 | 301 - 900 | >900 |
| Est. Time(days) | 10 | 12 | To be negotiated |
Port
Ningbo or Shanghai
Packaging Details
In carton and export standard packing
QTY: 3 pcs
N.W: 15.9 kgs
G.W: 17.2 kgs
MEAS: 42*32.5*34.5 cm
